BNH 3000 - Short Stroke Reciprocator

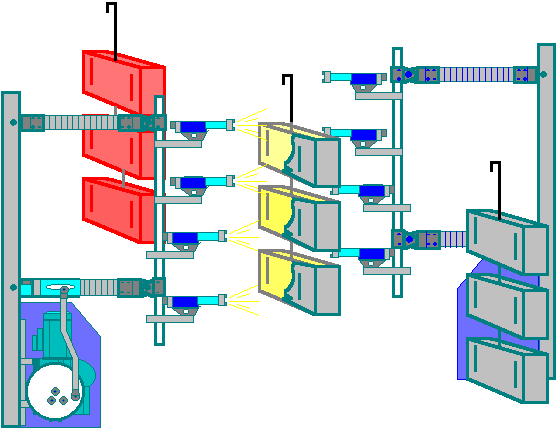

The least expensive automatic finishing system available. The BNH 3000 Short Stroke Reciprocator is one of the most reliable machines, ever. The sturdy, yet simple, drive is designed for millions and millions of smooth, trouble free painting cycles. Short stroke machines support HVLP, rotary, electrostatic or conventional spray applications. Talk to your application engineer about line tracking and part presentation for a complete system package.

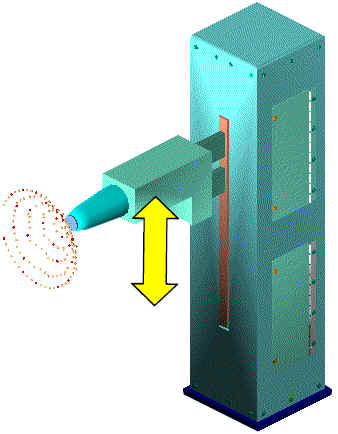

          BNH 3500

LINEAR SHORT STROKE RECIPROCATOR

Specifications

HEIGHT WIDTH DEPTH WEIGHT
80" 40" 48" 280 LBS

MOTOR

1-1/2 HP - 1800 RPM

"C" FACE MOUNT

EXPLOSION PROOF RATING: CLASS I, DIVISION I, GROUPS C&D

220 VAC/480 VAC, 3 PHASE, 60 HZ

(ALSO AVAILABLE TO MEET C.S.A. STANDARDS).

GEAR BOX

60:1 SEALED WITH SPECIAL INTERNAL BELLOWS

STROKE

BASIC UNIT 60 STROKES/MIN (30 UP/30 DOWN)

(OPTIONAL VARIABLE SPEED CONTROLLER IS AVAILABLE)

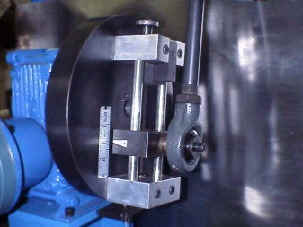

BASIC UNIT HAS 3 MANUAL STROKE ADJUSTMENTS (10", 14", 18")

(OPTIONAL AUTOMATIC STROKE LENGTH CONTROL IS AVAILABLE)

GUN BAR

BASIC UNIT INCLUDES GROUNDED GUN BAR WITH FOUR (4) QUICK ADJUST GUN MOUNTING BRACKETS

LENGTH OF GUN BAR 60"

ADJUSTMENT HOLES EVERY 1.5"

FRONT OR SIDE MOUNT INCLUDED IN BASIC MODEL

GROSS GUN BAR WEIGHT NOT TO EXCEED 60 LBS

CONTROL PANEL SPECIFICATIONS
HEIGHT WIDTH DEPTH ENVIRONMENTAL POWER
48" 24" 10" 32-120 degrees F 10A/120VAC
